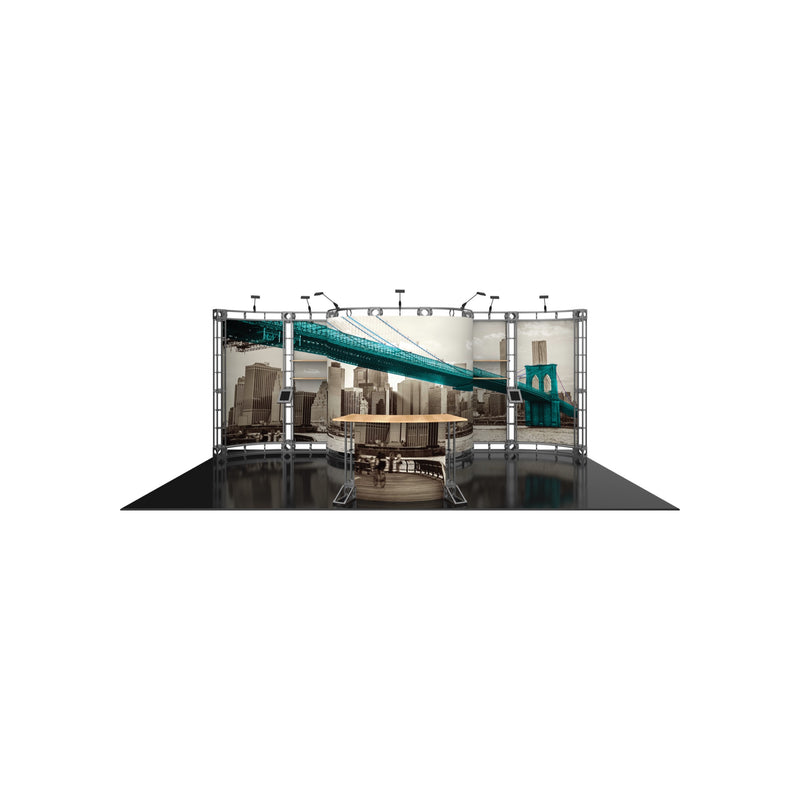

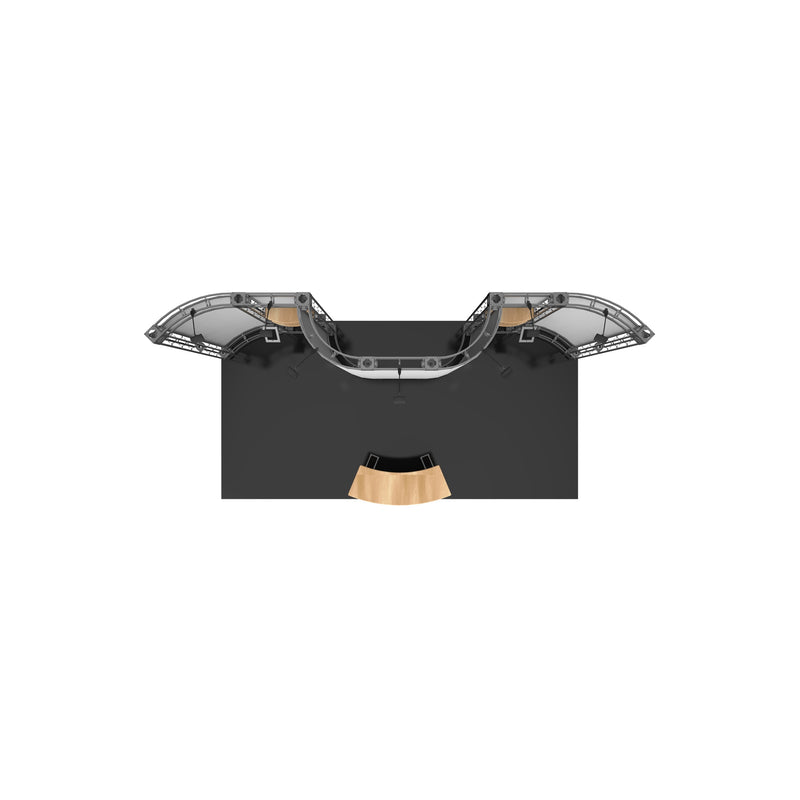

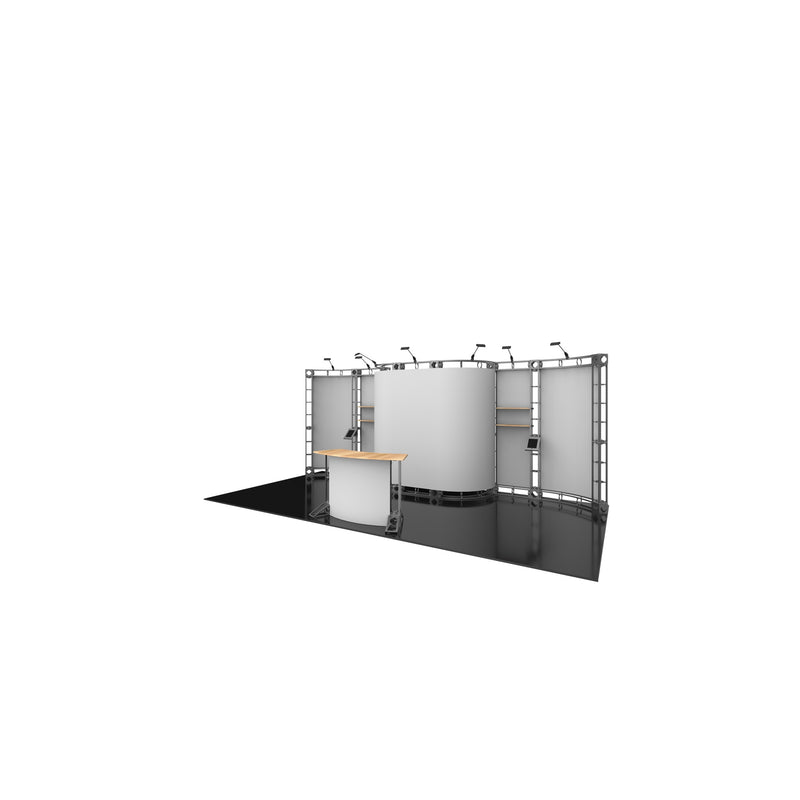

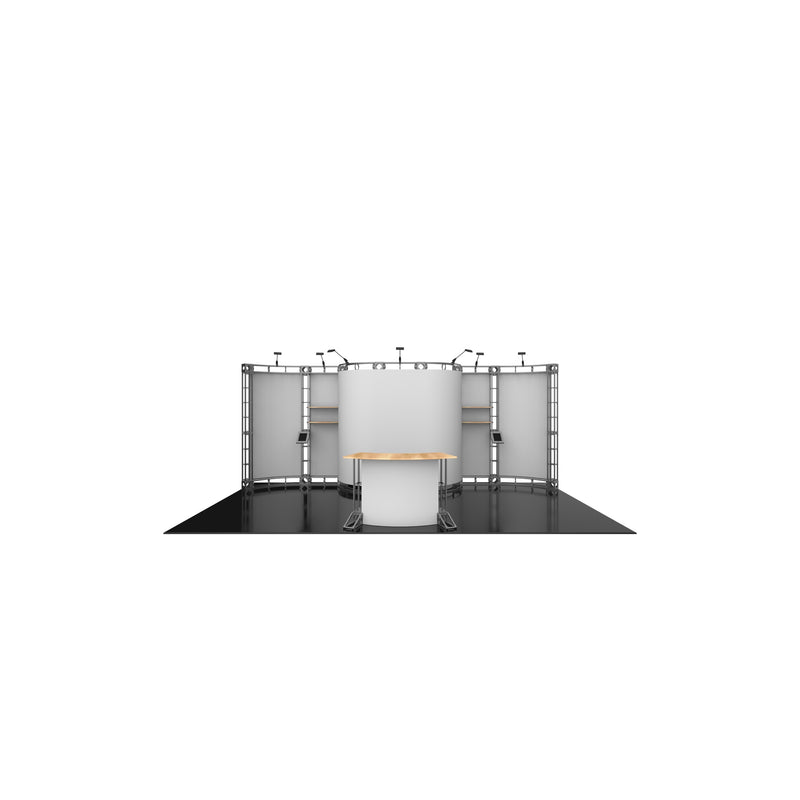

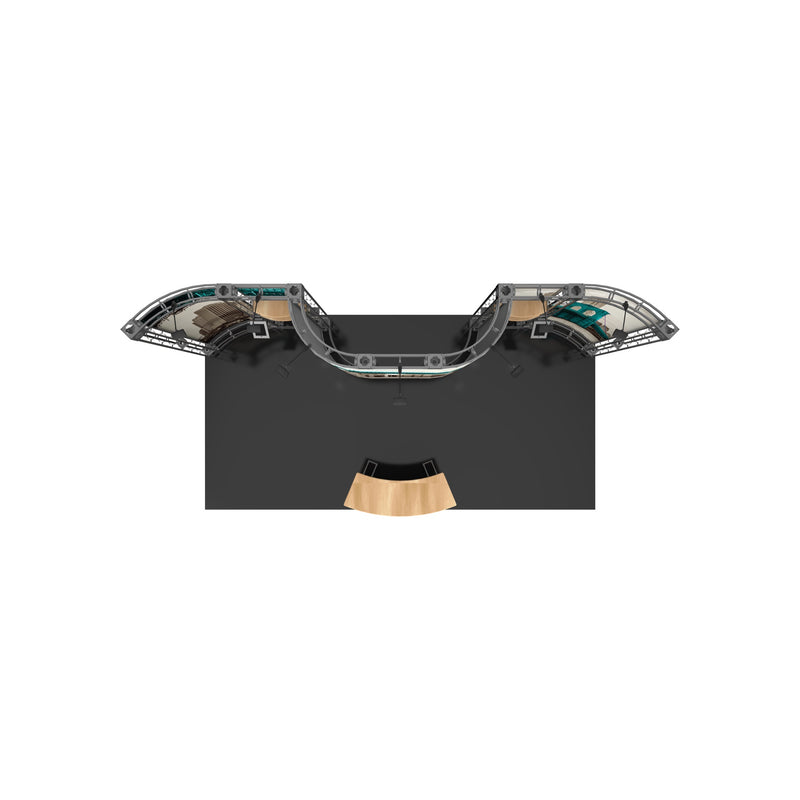

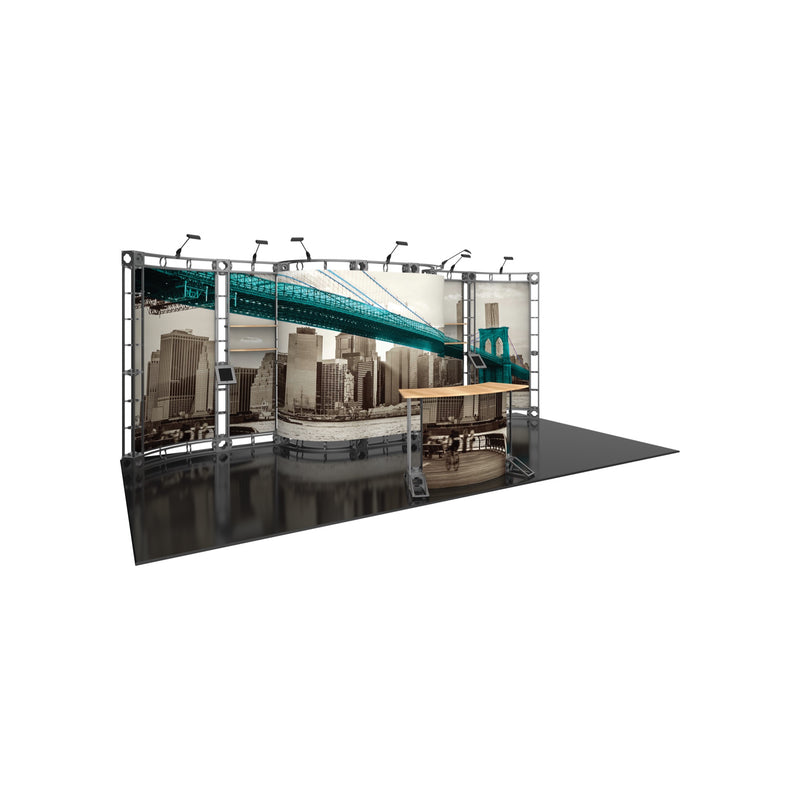

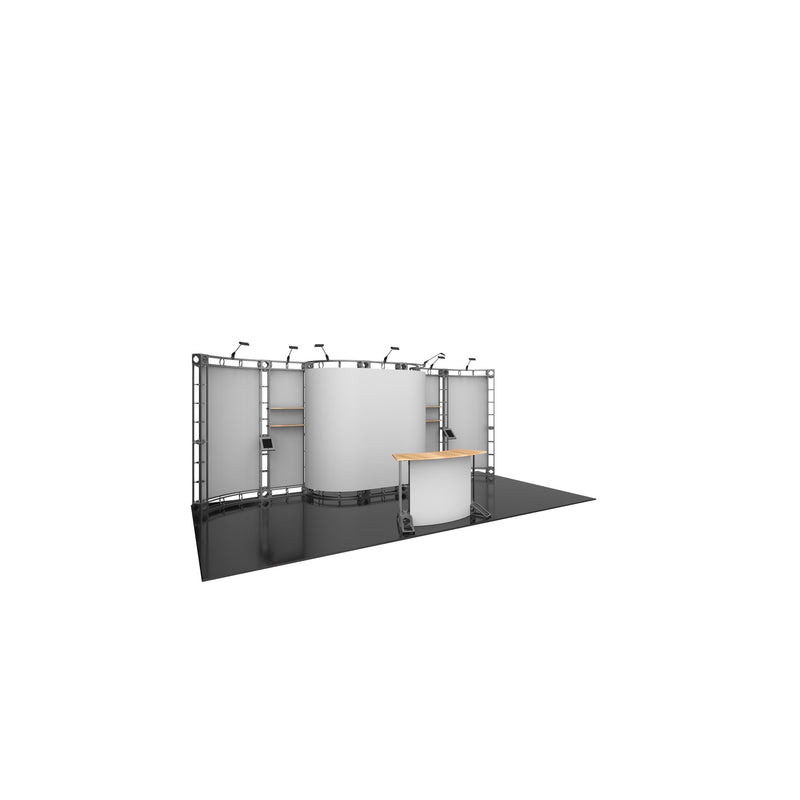

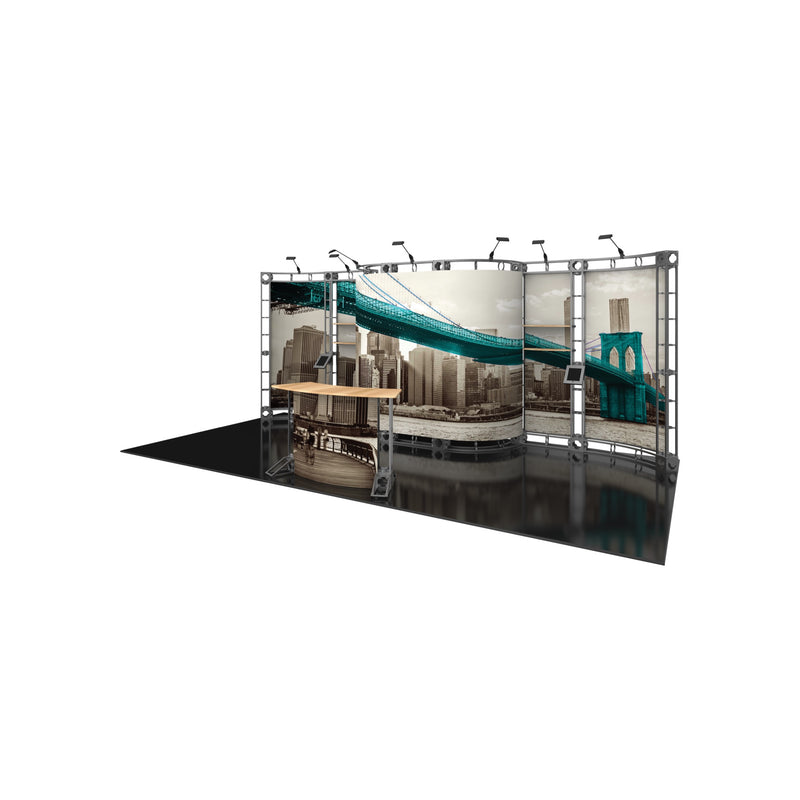

Orbea Orbital Express Truss 20ft Modular Exhibit

Details

- 10' x 20' kit size- Custom appearance- Toolless assembly- Simple twist and lock design Kit includes:- 16 x 6-way junction boxes- 6 x 24" straight truss lengths- 2 x 30" straight truss lengths- 8 x 36" straight truss lengths- 8 x 46" straight truss lengths- 6 x 45º curved truss lengths- 4 x 90º curved truss lengths- full sets of quicklock connectors- 2 x junction bases- 1 x curved counter*- 4 x 24" internal shelves**- 7 x Lumina 1, 50 watt spotlights- 2 x OCF2 molded cases- 1 x OCH2 molded case Graphic materials: Dye sublimated fabric panels*Counter max weight = 35 lbs / 15.88 kgs**Shelf max weight = 25 lbs / 11.24 kgsCountertop / Shelf color options: silver, black, mahogany, naturalKit does not include iPad/tablet holders

More Information

Reconfigurable	Yes
Assembled Dimensions	240"W x 120"D
Display Size	20' Inline
Shipping Dimensions	Ships in: 2 x OCF2 (51"L x 51"H x 23"D) 1 x OCH2 (52"L x 29"H x 15"D)
Approximate Shipping Weight	610 lbs

Lead Times

• Dye Sub Fabric Graphic [OR-GK-OB1-DS]: 7 days
• Orbea Orbital Express Truss Hardware [OR-K-OB1]: 4 days

Templates & Instructions

Instruction Sheets	IS_Orbea.pdf
Graphic Templates	GT_Counter_CurvedA_Dye_Sub.pdf GT_Orbea_Dye_Sub.pdf
Product Images	img_or-k-ob1.zip
